FRP pultruded profiles are constructed from continuous glass fibers, which are coated with a glass fiber mat and immersed in unsaturated polyester or epoxy resin before undergoing a heating and pultrusion process. This innovative manufacturing method results in profiles that are exceptionally strong, lightweight, and resistant to corrosion, making them ideal for a variety of demanding applications.
These pultruded FRP profiles are extensively utilized across multiple sectors, including construction, infrastructure, and industrial settings. They are available in various configurations, such as square tubes, round tubes, angle bar, and I-beams. Applications include FRP grids for flooring, anti-corrosion platforms for chemical processing, fence systems for safety and security, cooling tower supports for thermal management, and material supports for structural integrity.
With their excellent mechanical properties and durability, FRP pultruded profiles offer reliable solutions that enhance performance and longevity in even the most challenging environments.

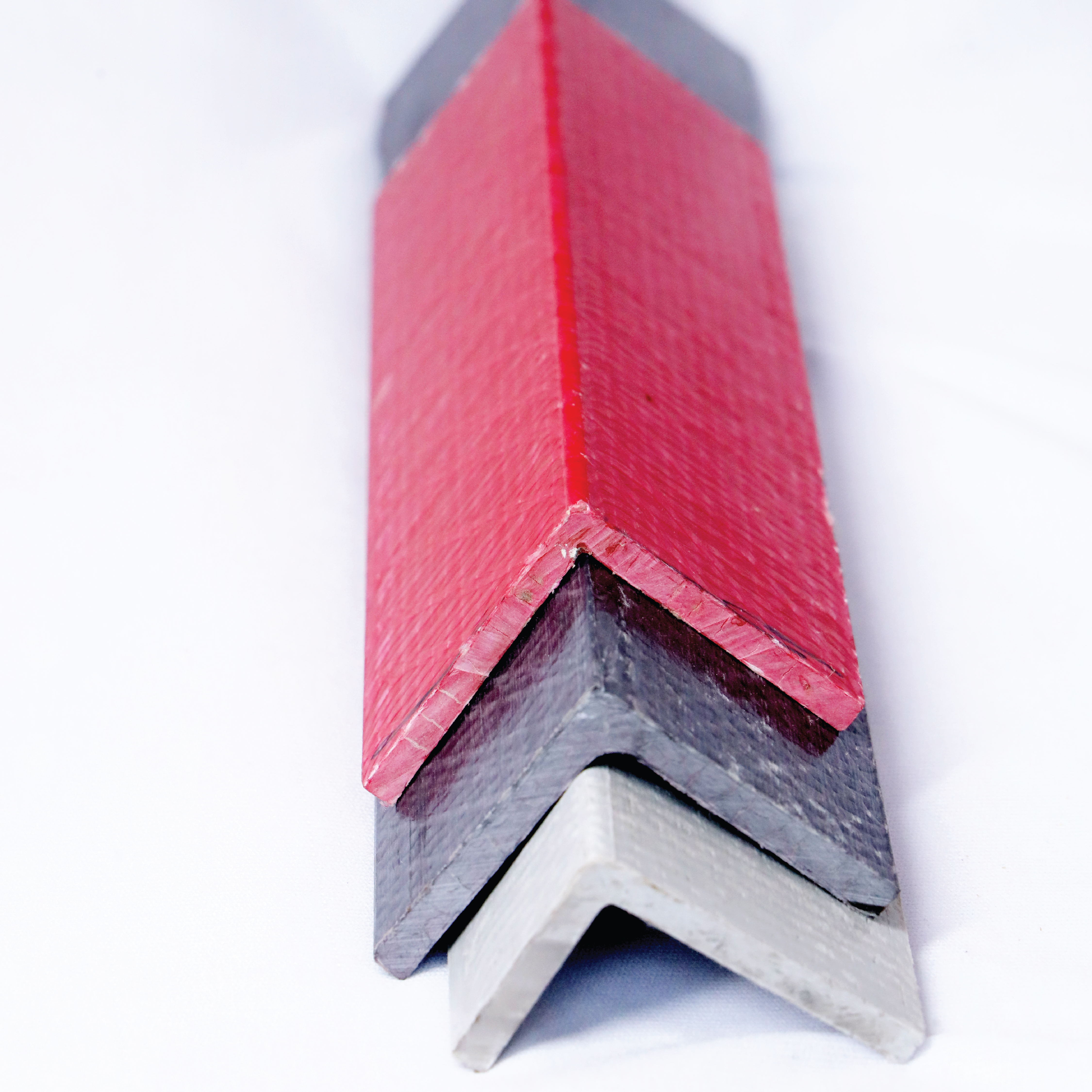

Overview: FRP Angles are L-shaped structural components that provide robust support at corners and joints. Manufactured through the Pultrusion process, they offer high mechanical strength with dimensional stability. Their corrosion resistance and non-conductive properties make them suitable for a wide range of applications in aggressive environments.
Applications
- Structural framing and support systems
- Walkways, platforms, and ladders
- Electrical panel framing
- Cable tray supports
- Modular fencing and enclosures
Dimension (mm) | Thickness (mm) | Weight/MTR (kg) |
50 x 35 | 5 | 0.820 |
50 x 50 | 5 | 1.000 |
40 x 40 | 4 | 0.630 |
50.8 x 50.8 | 3.17 | 0.630 |
50.8 x 50.8 | 6.15 | 1.200 |
76.2 x 76.2 | 6.15 | 1.800 |
Overview:
FRP I-Beams combine the mechanical properties of fiberglass with the benefits of thermosetting resin, providing a lightweight, high-strength material ideal for use in structural, mechanical, and architectural applications. These beams are extensively used in construction, and elevated platforms due to their superior corrosion resistance, durability, and reliability.
Applications
- Elevated platforms and walkways
- Industrial structures and supports
- Spill pallets and transformer enclosures
- Heavy-duty structural applications
Applications
Dimension (mm) | Thickness (mm) | Weight/MTR (kg) |
38 x 15 | 4 | 0.470 |
101.6 x 50.8 | 6.35 | 2.320 |
152.4 x 76.2 | 6.35 | 3.550 |
Overview:

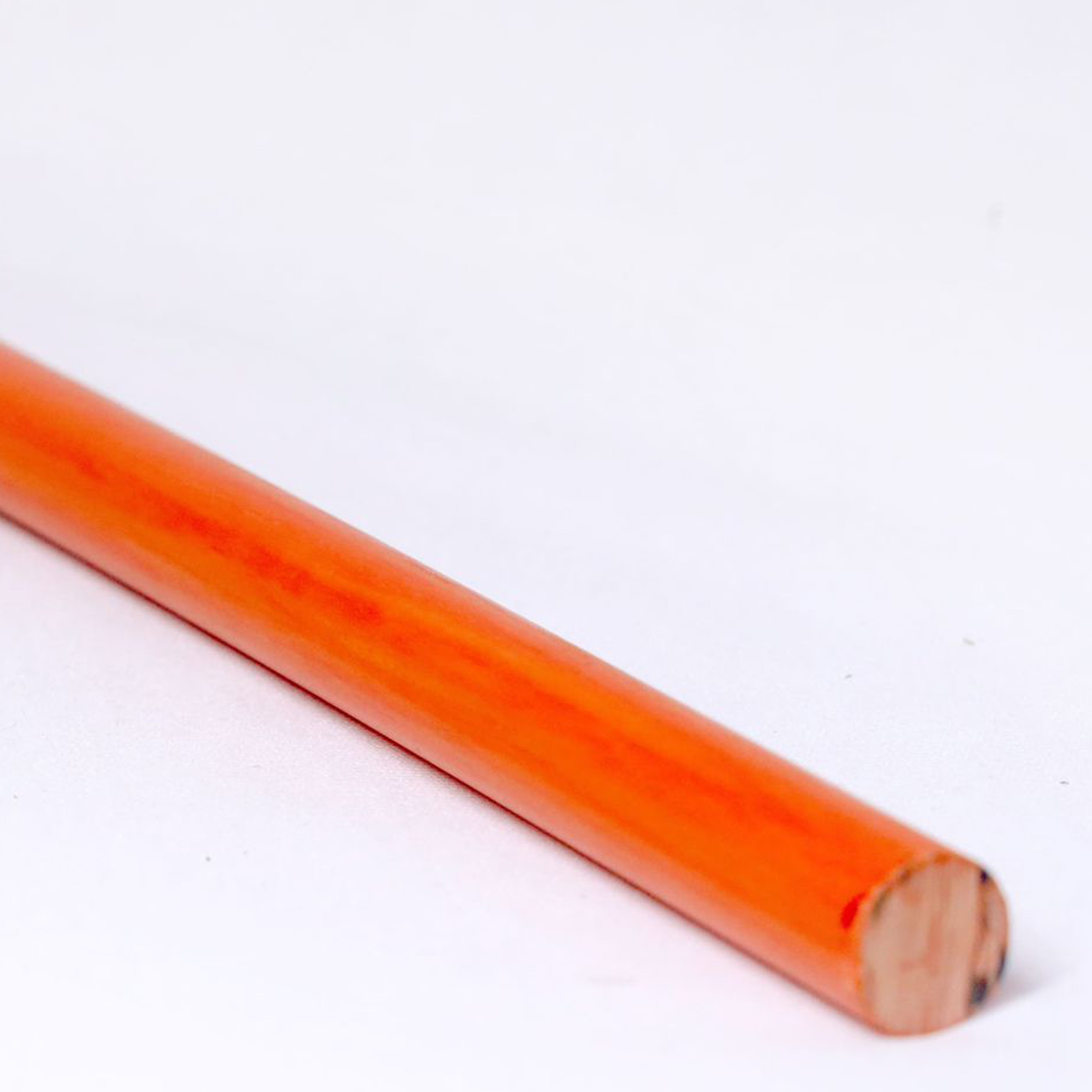

FRP Solid Bars are high-strength, corrosion-resistant profiles suitable for applications requiring solid structural elements. They combine rigidity with lightweight properties, making them versatile for multiple industrial and furniture applications.
Applications
- Yard Fencing
- Structural supports and frameworks
Diameter (mm) | Weight/MTR (kg) |
8 | 0.100 |
16 | 0.390 |
Overview:

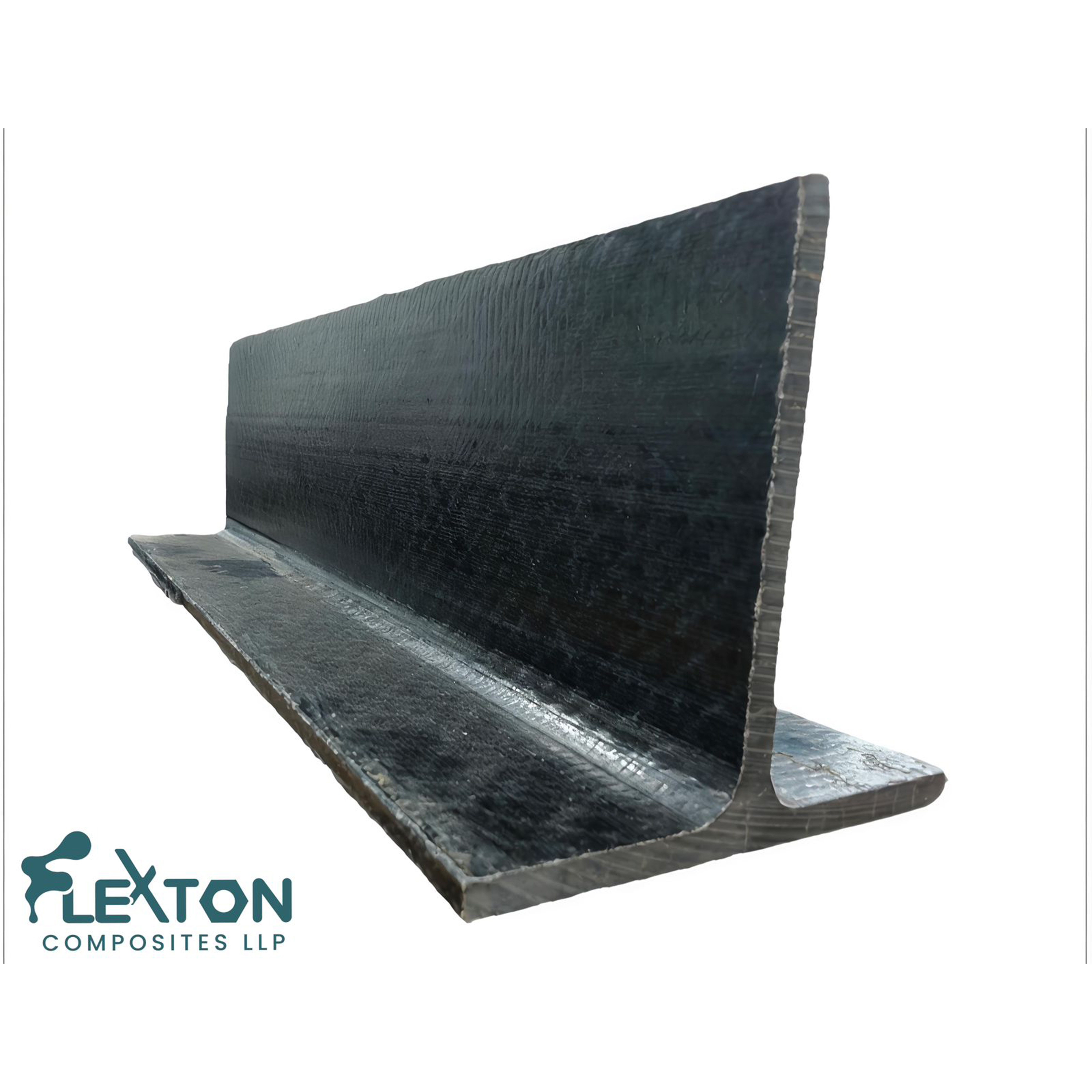

FRP T-Sections provide strong support along one axis, making them ideal for joining, bracing, or supporting panels and beams. Their unique shape allows precise integration into structural frameworks requiring directional strength.
Applications
- Panel supports and bracing in structures
- Roofing frameworks
- Conveyor supports
- Lightweight industrial assemblies
- Structural reinforcement
Dimension (mm) | Thickness (mm) | Weight/MTR (kg) |
38 x 38 | 19 | 2.060 |
39.8 x 39.8 | 14.8 | 1.850 |
Overview:

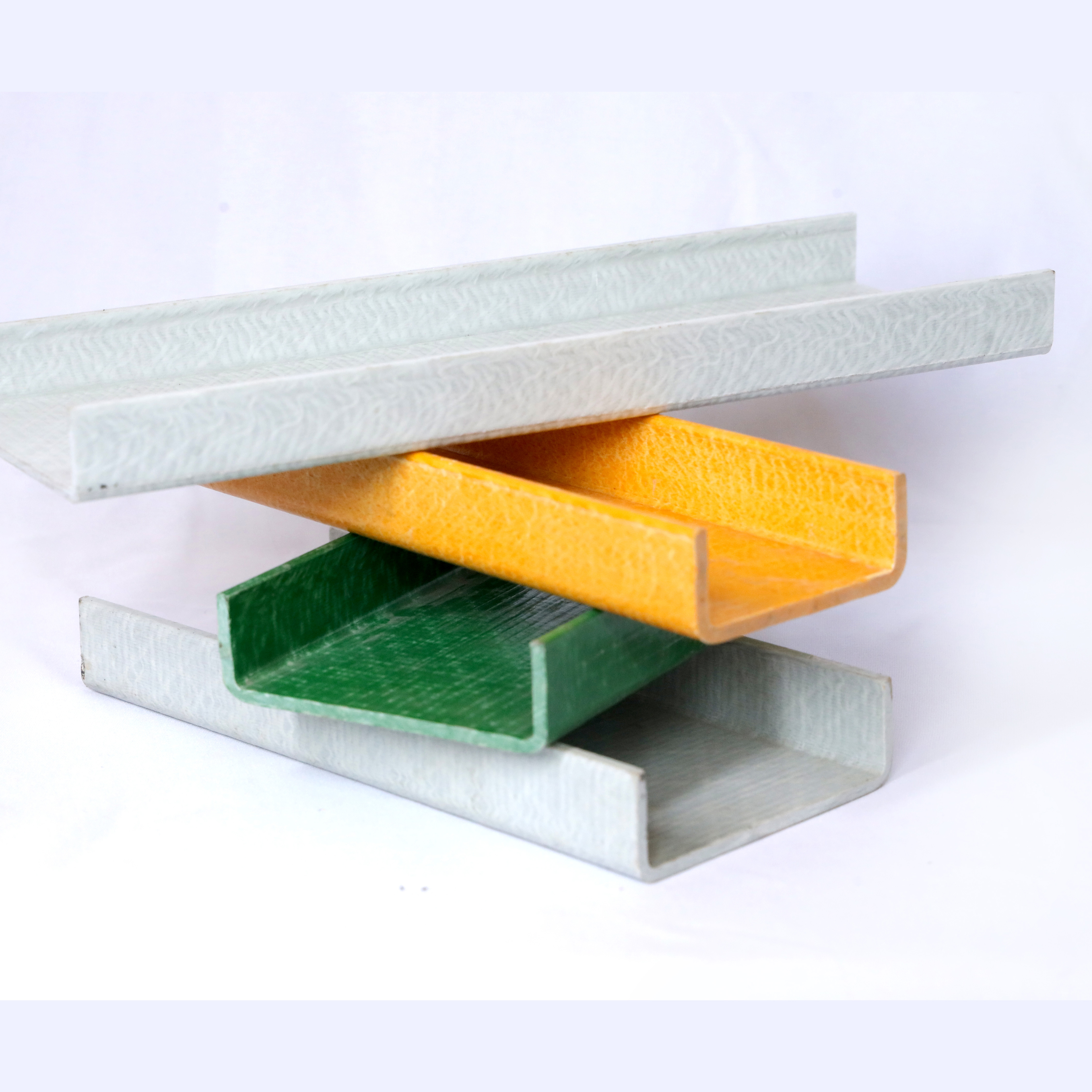

C Channels are U-shaped profiles that provide excellent load-bearing capabilities with minimal weight. Their open design allows for easy integration into various structural systems. These profiles are ideal for applications requiring high strength and corrosion resistance.
Applications
- Cable trays and raceways
- Support beams for platforms and walkways
- Structural framing in corrosive environments
- Electrical equipment supports
Dimension (mm) | Thickness (mm) | Weight/MTR (kg) |
32 x 20 x 16 | 3 | 0.390 |
50 x 25 | 3 | 0.590 |
50 x 50 | 3 | 0.850 |
75 x 30 | 3 | 0.750 |
89 x 40 | 4 | 1.250 |
100 x 50 | 3 | 1.150 |
101.6 x 29.8 | 3.17 | 0.950 |
101.6 x 29.8 | 6.35 | 1.830 |
118 x 78 | 15 | 7.100 |
140 x 38 | 6 | 2.400 |
150 x 40 | 15 | 5.900 |
152.4 x 41.3 | 3.17 | 1.400 |
152.4 x 41.3 | 6.17 | 2.650 |
203.2 x 55.56 | 9.5 | 5.410 |
235 x 60 | 10 | 6.500 |
Overview:
FRP Round Pipes are cylindrical profiles offering smooth surfaces, high corrosion resistance, and excellent chemical durability. Lightweight yet strong, they are ideal for piping systems, railing assemblies, and structural supports in harsh industrial and outdoor environments.
Applications
- Water and chemical pipelines
- Handrails and guardrails
- Scaffolding and structural supports
- Electrical conduit systems
- Marine and offshore applications
Outer Diameter (mm) | Thickness (mm) | Weight/MTR (kg) |
32 | 3 | 0.590 |
50.8 | 3 | 0.940 |
70 | 3 | 1.270 |
130 | 8 | 6.250 |
31.7 (Fluted Pipe for Ladder) | 4.35 / 3.7 | 0.820 |
Overview:

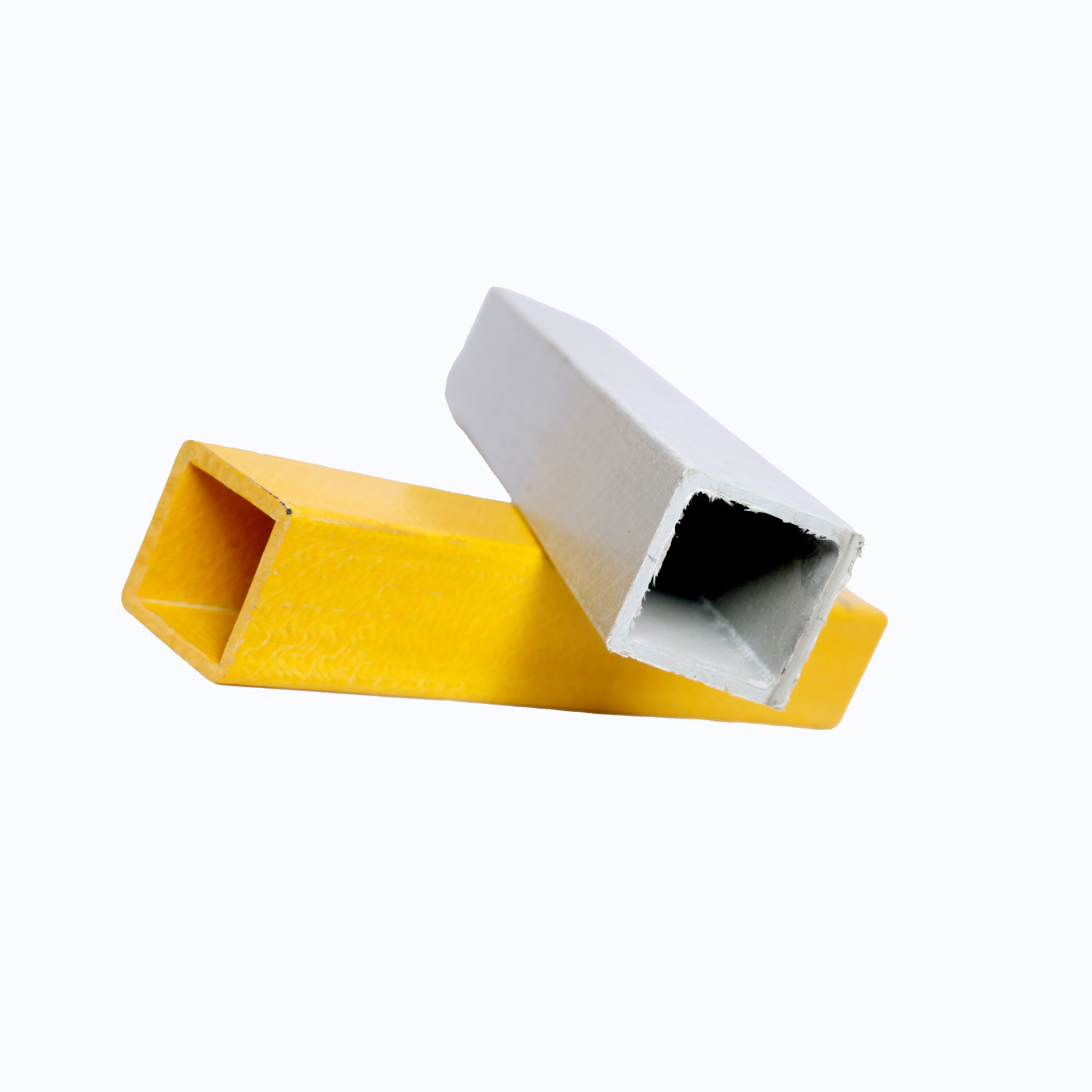

FRP Square Pipes are hollow profiles that provide excellent strength and rigidity. Their uniform cross-section allows for efficient load distribution, making them suitable for various structural applications. These profiles are resistant to corrosion and UV degradation, ensuring long-term performance.
Applications
- Structural frameworks and supports
- Railings and fencing systems
- Modular construction elements
- Furniture frames
- Architectural applications
Dimension (mm) | Thickness (mm) | Weight/MTR (kg) |
50 x 50 | 4 | 1.550 |
50.8 x 50.8 | 3.17 | 1.250 |
50.8 x 50.8 | 6.35 | 2.480 |
63.5 x 63.5 | 6.35 | 3.130 |
76.2 x 76.2 | 3.17 | 1.890 |
76.2 x 76.2 | 6.35 | 3.750 |
88.9 x 88.9 | 3.17 | 2.170 |
88.9 x 88.9 | 6.35 | 4.320 |
101.6 x 101.6 | 6.35 | 4.950 |
Overview:
Rectangle Pipes offer high load-bearing capacity in a compact, rectangular form. Their flat surfaces provide stability and flexibility in design, making them ideal for platforms, benches, and other structural applications.
Applications
- Platforms and walkways
- Handrails and fencing
- Industrial supports
- Benches and seating structures
- Architectural frameworks
Dimension (mm) | Thickness (mm) | Weight/MTR (kg) |
50 x 25 | 3 | 0.860 |
75 x 30 | 4 | 1.600 |
